Model | HT 06 |
Display screen | 2.8" full angle TFT display screen |
Infrared image resolution | 256×192 |
Visible image resolution | 640×480 |
Foc us length | 3.2mm |
Field angle | 56°×42° |
IFOV | 3.75mrad |
Pixel spacing | 12μm |
Frame rate | ≤25Hz |
Focusing mode | Non-heating fixed focus lens |
NETD | ≤50mk@25°C, @F/1.0 |
Wavelength coverage | 8~14μm |
Emissivity | Adjustable from 0.01 to 1.0 |
Color palette | Rainbow, Iron, Cold color, White hot, Black hot |
Software analysis & Video | Support |
Measuring range | -20°C~550°C |
Accuracy | -15°C~550°C(±2°C 或 ±2%); -20°C~-15°C ±4°C |
Setting | Unit, Language, Date, Time, Format, Auto power-off |
Storage capacity | Built-in 4G eMMC (user available storage space is about 3G) |
Language | Chinese, English, German, Italian |
Specifications | |
File format | JPG/MP4 |
Power interface | Type-C |
Battery type | Built-in 18650 battery |
Battery capacity | 2000mAh |
Work temperature | 0°C~45°C (32°F~113°F) |
Working time | 2 - 3 hours |
Storage temperature | -20°C~+60°C (-4°F~140°F) |
Product size | 96×72×226mm |
Relative humidity | 10%RH~85%RH |
Product weight | 375g |

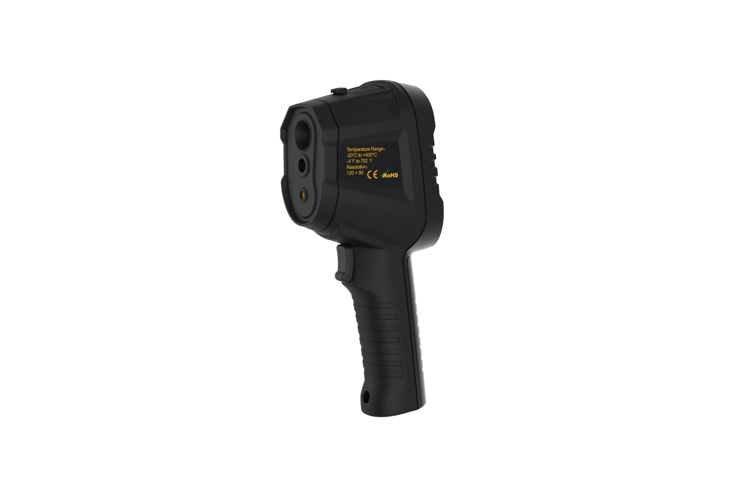

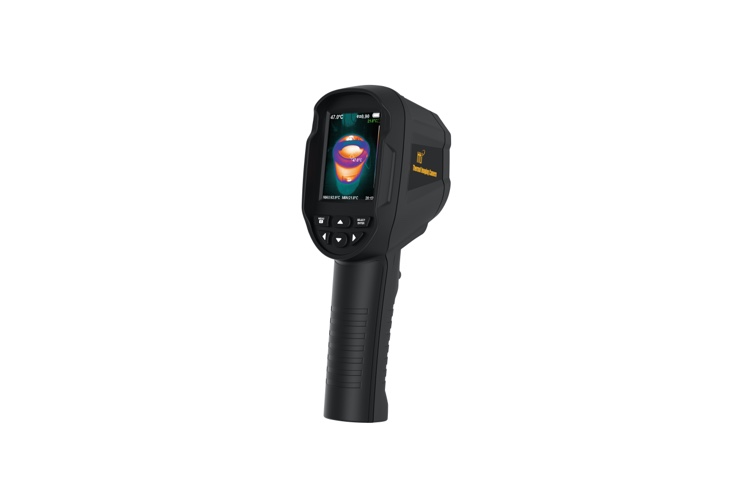

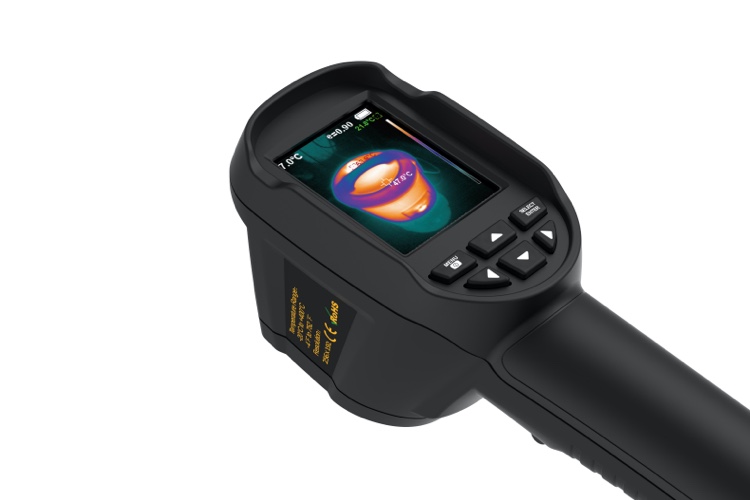

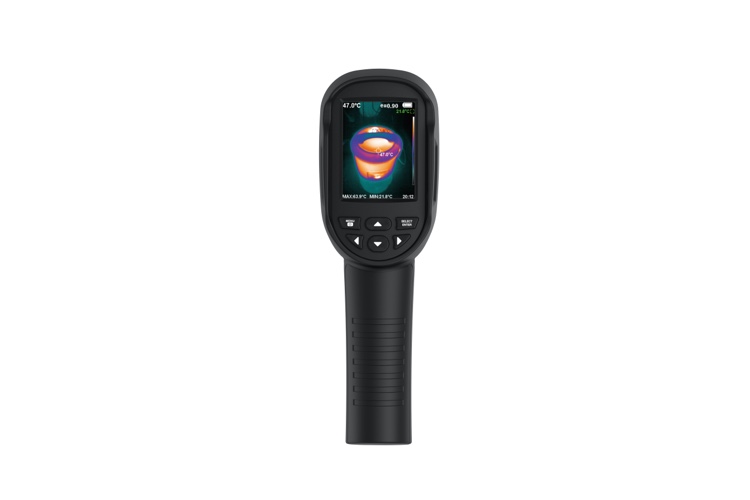

HT 06_Handheld infrared thermal imager
Widely used in many areas such as medical, policing, firefighting,archaeology, transportation, agriculture and geology, this product is ideal for electricians and maintenance technicians to quickly locate problem areas.

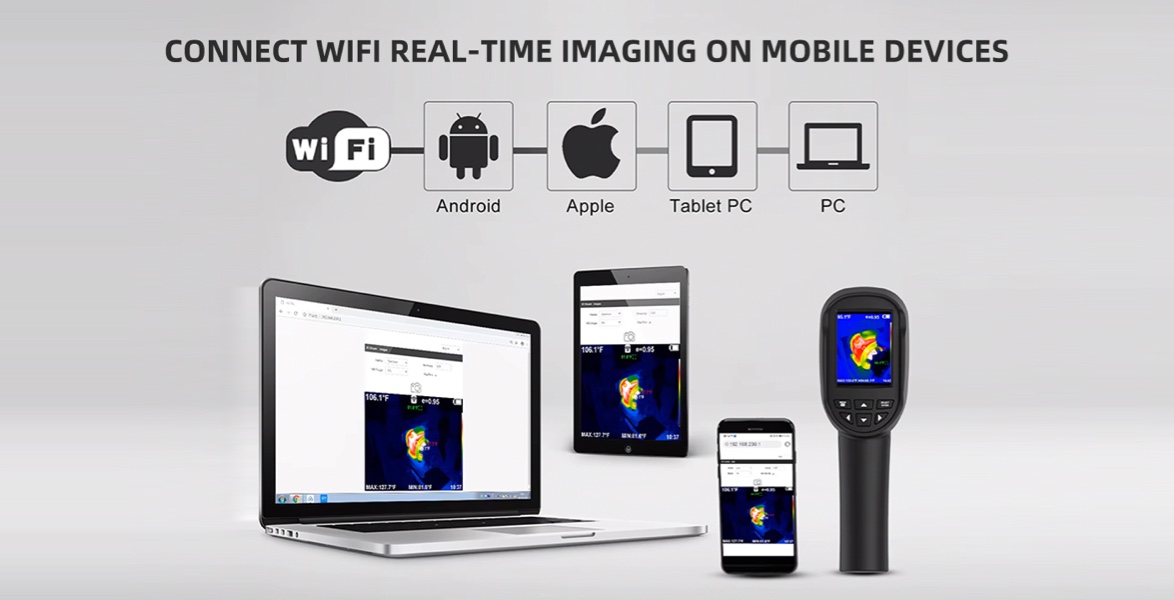

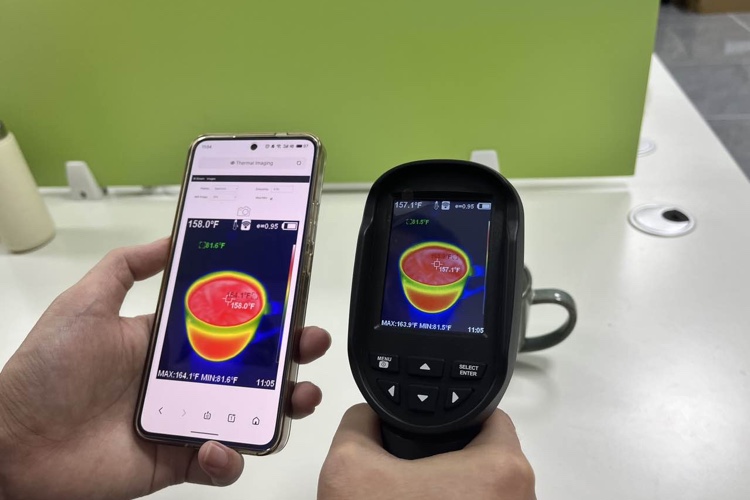

WIFI support
Self-contained software analysis and video photography
Center/hot and cold spot tracking available
256+640 HD Fusion, Smart 5-Color Display, Dual-Spectrum Power in One Device!
The HT 06 handheld thermal imaging system innovatively integrates a 256×192 infrared sensor with a 640×480 HD visible-light camera, featuring five professional color palettes (Rainbow, Iron, Cold, White Hot, Black Hot). Its intelligent dual-spectrum fusion technology simultaneously displays thermal distribution and visual details, making it a versatile professional tool for electrical maintenance, building diagnostics, and security patrols.

infrared thermogram
Technical Parameter
