| model | V01-1.5 | V01-M2 | V01-10 | V02-9.1 | V02-13 | V03-9.1 | V03-13 |
| Resolution | 256*192 | 256*192 | 256*192 | 384*288 | 384*288 | 640*512 | 640*512 |
| NETD | <50mk | <50mk | <50mk | <40mk | <40mk | <40mk | <40mk |
| Lens focal length | 1.5mm | 10mm | 10/3.6mm | 9.1mm | 13mm | 9.1mm | 13mm |
| Field of view | 120°×86° | 18°×13° | 18°×13° 49°×37° | 29°×22° | 20°×15° | 48°×39° | 34°×27° |
| Frame rate | 25fps | 25fps | 25fps | 50fps | 50fps | 50fps | 50fps |
| Night vision distance | 60m | 350m | 350m/140m | 320m | 500m | 320m | 500m |
| Video output | PAL/UVC/AHD | UVC | PAL/UVC/AHD | PAL | PAL | PAL | PAL |
| AI identify distance (peedy) | <10m | <100m | <100m/<40m | <40m | <80m | <40m | <70m |
| AI Distance Identification (Vehicle) | <20m | <200m | <200m/<100m | <100m | <200m | <100m | <200m |
| Automatic defrosting | Not supported | Supported | Supported | Supported | Supported | Supported | Supported |
| Size (mm) | 35*35*40 | 30*26*40 | 35*35*49 | 42*42*60 | 42*42*70 | 42*42*60 | 42*42*70 |
| weight | 100g | 60g | 100g | 185g | 190g | 185g | 190g |
| powered by | 5-12V | 5V | 5-12V | 5-24V | 5-24V | 5-24V | 5-24V |
| power | <1W | <1W | <1W | <1.5W | <1.5W | <1.5W | <1.5W |
| other | 12μm/white heat module/detail enhancement/automatic shutter correction/IP67 protection/working temperature (-30°-70°C) | ||||||
| Note | C2-10 model 256*192 resolution camera is only used for supporting general-purpose hosts (other hosts are adapted to C-M2 cameras) | ||||||
HT V01/HT V02/HT V03
Intelligent vehicle mounted infrared thermal imaging
new
?Pod Module
The maximum resolution ofinfrared thermal image is 640*512
13mm/10mm /9.lmm/3.6mm/1.5mm Non-thermal fixing lenses with different focal lengths
500m Extremelylongnightvision distance
120°x86°Extra large field of view
Anti-high-beam,dazzling interference
Smoke, fogand haze

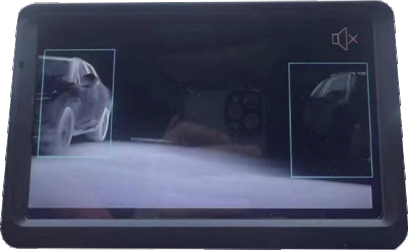

infrared thermogram
Technical Parameter
